• 3-passenger custom cloth 40/20/40 reclining split bench seat w/center fold-down storage armrest, manual driver/passenger lumbar
• Air conditioning
• Auto pwr door locks/windows w/backlit switches
• Color-keyed cloth headliner
• Color-keyed soft vinyl door trim panels w/cloth inserts-inc: map pockets w/carpeted trim, door reflectors
• Cruise control
• Dual color-keyed padded cloth sunshades w/driver storage clip, passenger mirror
• Dual covered pwr points
• Dual dash cup holders
• Dual foldaway coat hooks
• ETR AM/FM stereo w/compact disc-inc: seek-scan, digital clock, auto tone control, theft lock, speed compensated volume, enhanced performance speaker system
• Heater/defogger w/side window defoggers
• Illum entry
• Keyless entry w/content theft alarm
• Leather-wrapped steering wheel
• Lighting-inc: dome w/delayed entry feature, ashtray, glove box, underhood
• LS decor
• Message center warnings-inc: system malfunction, trans overheat, low fuel, low coolant, vehicle security, oil level/temp/pressure/change needed
• Overhead console
• Passenger assist handles
• Passlock theft deterrent security system
• Tilt wheel
• Warning tones-inc: key-in-ignition, seat belt, headlamp, turn signal

• 105 amp alternator
• 2 front tow hooks
• 34 gallon fuel tank
• 8-lead trailering wire harness
• 8600# GVWR (4410 front/6000 rear), springs (4500 front/6000 rear), axles (4500 front/6000 rear)
• Aluminized stainless steel exhaust system
• Double-wall steel construction 8' pickup box w/extensive corrosion protection
• Floor-mounted transfer case
• Four wheel drive
• Four-wheel anti-lock brake system
• Front stabilizer bar
• Full-size spare tire w/steel wheel
• HD 600 CCA battery
• High-capacity air cleaner
• Independent front suspension w/torsion bars
• LT245/75R16E all-season SBR BSW tires
• Mechanical jack & wheel wrench
• Multi-leaf spring rear suspension
• Pwr four-wheel disc brakes
• Pwr steering
• Under-body mounted locking winch-type spare tire carrier

• Daytime running lamps
• Driver & front passenger airbags w/passenger side deactivation switch
• Four-wheel anti-lock brake system
• Head restraints at outboard seating positions
• High/low note horn
• Manual lap safety belts, center seat position
• Manual lap/shoulder safety belts, outboard seat positions
• Side door guard beams

6.0L (364) SFI V8 (VORTEC) ENGINE

• (STD)

• HD 4-SPEED ELECTRONICALLY-CONTROLLED AUTOMATIC TRANSMISSION W/OD -inc: HD aux trans oil cooler brake/trans shift interlock
• ELECTRIC REAR WINDOW DEFOGGER
• CUSTOM CLOTH SEATS
• 6.0L (364) SFI V8 (VORTEC) ENGINE (STD)
• TWO-TONE PAINT
• 8600# GVWR (4410 front/6000 rear) springs (4500 front/6000 rear) axles (4500 front/ 6000 rear) (STD)
• ENGINE OIL COOLING SYSTEM
• FIRM RIDE SUSPENSION PKG -inc: monotube 36mm shocks
• ELECTROCHROMATIC INSIDE REARVIEW MIRROR * COMPASS * OUTSIDE TEMP DISPLAY
• CAMPER & FIFTH WHEEL WIRING PROVISIONS
• SILVERADO 1500 LS EXTENDED CAB 4X4
• 3.73 AXLE RATIO
• CELLULAR PHONE PROVISIONS -inc: wiring for remote microphone & cellular phone
• LOCKING DIFFERENTIAL
• (4) POLISHED FORGED ALUMINUM WHEELS
• (5) LT245/75R16E ON-OFF ROAD SBR BSW TIRES
• DUAL CHROME FOLD-A-WAY PWR HEATED MIRRORS
• HD TRAILERING SPECIAL EQUIPMENT
• 40/20/40 RECLINING SPLIT BENCH SEAT -inc: center fold-down storage armrest manual driver/passenger lumbar (STD)
• AUTOTRAC ACTIVE 4WD TRANSFER CASE
• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• ABS
• Automatic Headlights
• Daytime Running Lights
• Power Mirror(s)
• Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Floor Mats
• Leather Steering Wheel
• Adjustable Steering Wheel
• Immobilizer
• Cruise Control
• Power Door Locks
• Power Windows
• Security System
• Keyless Entry
• Power Door Locks
• A/C
• AM/FM Stereo
• CD Player
• Power Outlet
• ABS
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Daytime Running Lights

• Brakes
• Brake ABS System: Four-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.14
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 19.5
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 70.7
• Tailgate Width (in): 60.6
• Cooling System
• Total Cooling System Capacity (qts): 14.8
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 105
• Exterior Dimensions
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): 97.6
• Frame Width, Rear (in): 42.1
• Front Bumper to Back of Cab (in): 114.2
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.1
• Ground to Top of Load Floor (in): 35.0
• Height, Overall (in): 74.2
• Length, Overall w/o rear bumper (in): 222.0
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.0
• Wheelbase (in): 133.0
• Width, Max w/o mirrors (in): 79.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Interior Dimensions
• Front Head Room (in): 41.0
• Front Hip Room (in): 61.4
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Passenger Capacity: 3
• Steering
• Steering Ratio (:1), At Lock: 13.0
• Steering Ratio (:1), On Center: 15.0
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 45.2
• Summary
• Body Code: E63
• Body Style: Reg Cab 8' Fleetside

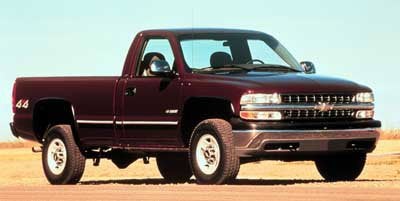

• Vehicle Name: Chevrolet Silverado 2500
• Suspension
• Axle Capacity - Front (lbs): 4500
• Axle Capacity - Rear (lbs): 6000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Spring Capacity - Front (lbs): 4500
• Spring Capacity - Rear (lbs): 6000
• Stabilizer Bar Diameter - Front (in): 1.42
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: QIW
• Front Tire Size: LT245/75R16
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: QIW
• Rear Tire Size: LT245/75R16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 2205
• Spare Tire Order Code: QIW
• Spare Tire Size: LT245/75R16
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11,000
• Weight Information
• Curb Weight - Front (lbs): 3120
• Curb Weight - Rear (lbs): 2141
• Gross Axle Wt Rating - Front (lbs): 4410
• Gross Axle Wt Rating - Rear (lbs): 6000
• Gross Combined Wt Rating (lbs): 14,000
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
